Precision
PIN pins
for connectors
Consistent pins
for automated lines
6 pin series
for every application
□ 0.30–1.20
1.27–3.81 PH
3.0–30 mm
IEC 60352-5
3.0–50 mm
⌀ 0.30–5.0
Quick selection table
| Series | Cross-section (±0.01 mm) | Length (±0.1 mm) | Material | Plating |
|---|---|---|---|---|

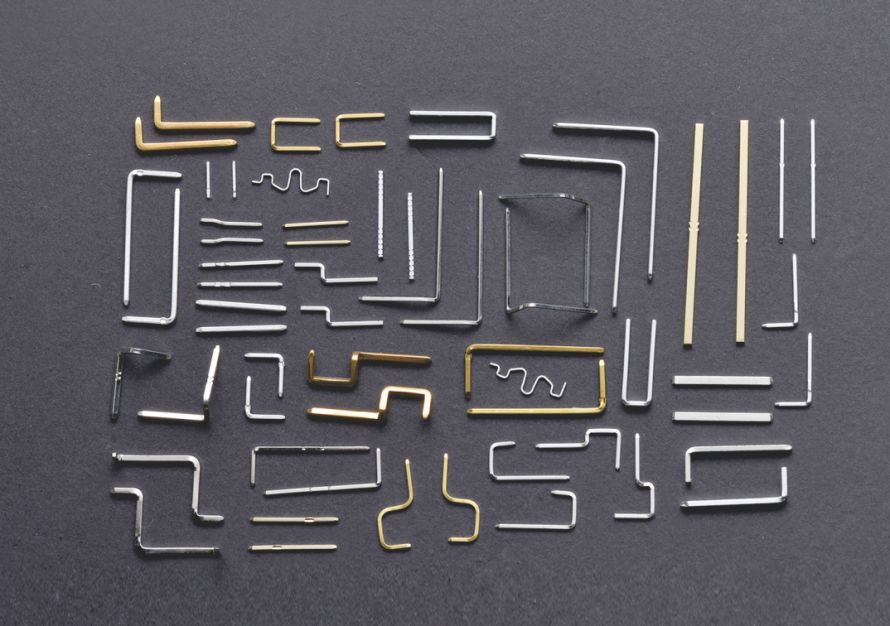

| Square & custom pins | □ 0.30–1.20 | 3.0–70 | H65, H70, C1100, C5191, C5100, cupronickel, Cu-Mg, copper-clad steel | Bright/matte tin, gold, silver, nickel |

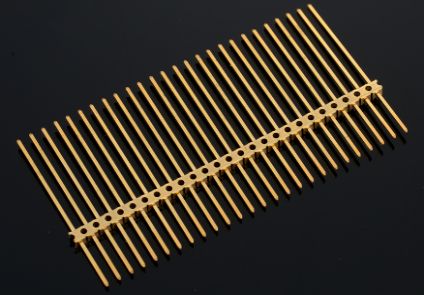

| Tape square pins | □ 0.40–1.00 | On request | On request | Bright/matte tin, gold |

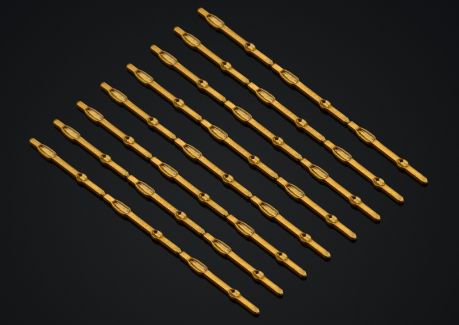

| Continuous pins | □ 0.3–1.2 / ⌀ 0.5–2.0 | 3.0–30 | H65, H70, C1100, C1011, C1020, C5100, C5191, C7025, C18160, C19400, C14415, C19010 | Bright/matte tin, gold |

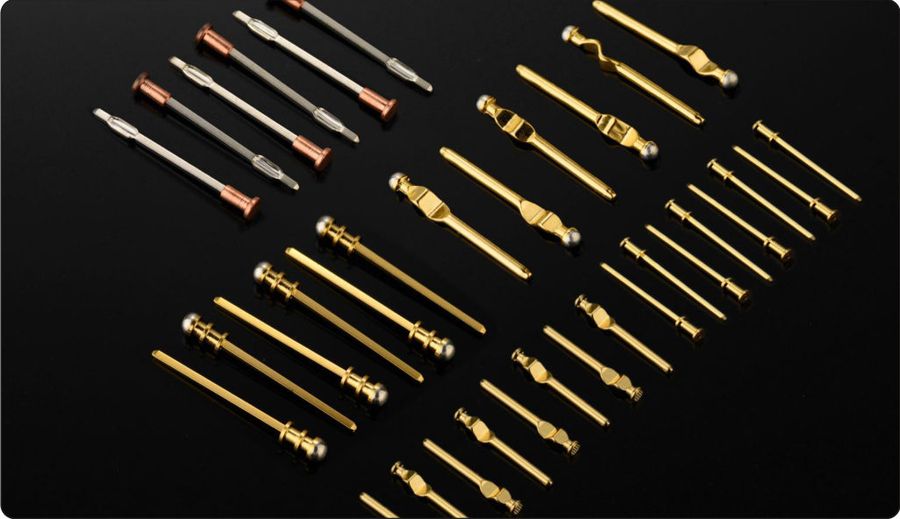

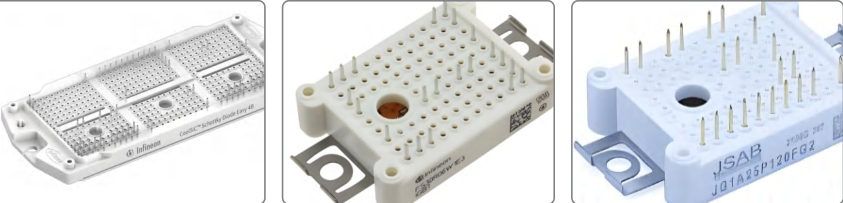

| IGBT pins | □ 0.3–1.2 / ⌀ 0.5–2.0 | 3.0–30 | As continuous pins | Bright/matte tin, gold |

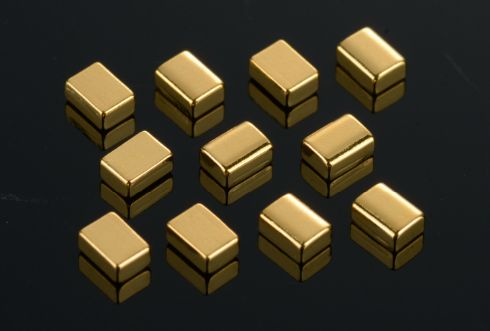

| Copper blocks | □ 0.3–1.2 / ▭ 0.3×0.5–3.0×4.0 | 3.0–50 | H65, H70, C1100 | Bright/matte tin, gold, silver, nickel |

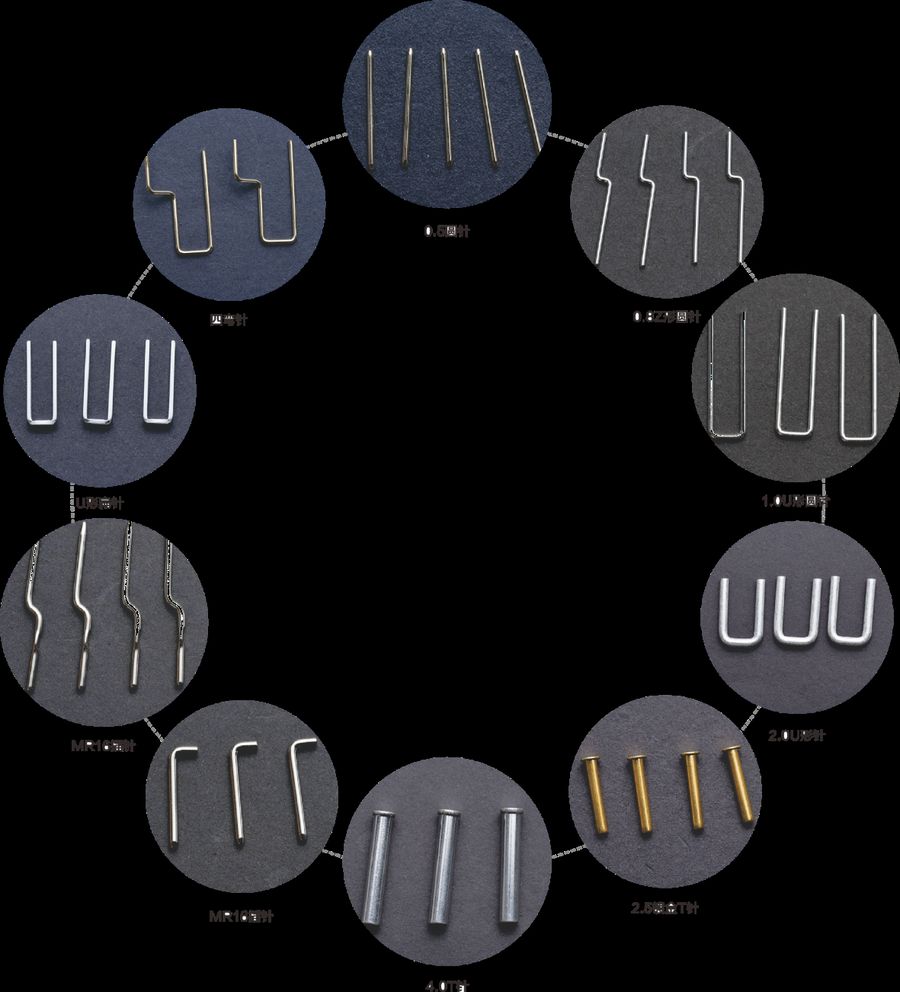

| Round pins | ⌀ 0.30–5.0 | 3.0–70 | H65, H70, C1100, C5191, C5100, cupronickel, Cu-Mg, copper-clad steel | Bright/matte tin, gold, silver, nickel |
| Pitch | Wire cross-section (mm) |
|---|---|
| 1.27 mm | 0.40 · 0.46 |
| 2.00 mm | 0.40 · 0.50 |
| 2.20 mm | 0.60 · 0.615 · 0.625 · 0.635 · 0.64 |
| 2.50 mm | 0.625 · 0.635 · 0.64 |
| 2.54 mm | 0.60 · 0.615 · 0.625 · 0.635 · 0.64 |
| 3.00 mm | 0.615 · 0.625 · 0.635 · 0.64 |
| 3.50 mm | 0.60 · 0.625 · 0.64 · 0.80 · 1.00 |
| 3.81 mm | 0.60 · 0.625 · 0.64 · 0.80 · 1.00 |
H62 · H65 · H70 · H75 · H80 · H85Common choice for connector pins: easy to form, cost-effective.C1100 · C1011 · C1020Highest conductivity, for copper blocks and high-current pins.C5100 · C5191 · C5210Good spring and fatigue properties for split pins and clamping contacts.C7025 · C18160 · C19400 · C14415 · C19010Balance strength and conductivity for automotive and press-fit pins.Where our pins
are used
HIFAM · Haihua Technology
Founded in 2004 in Dongguan, Guangdong, HIFAM develops and manufactures PIN pins, square pins, tape pins, IGBT pins and precision stamped terminals in three plants: Dongguan, Jiangxi and Kunshan.
HIFAM is a National High-Tech Enterprise and a “Specialized, Refined, Distinctive and Innovative” enterprise with more than 60 patents. Its customers include Fortune 500 companies, listed companies and research institutes.
Quote to delivery
in 4 steps
Questions about PIN pins
What is a PIN pin and what is it used for?
A PIN pin (contact pin) is a metal part, usually copper or copper alloy with plating, that conducts current, connects circuits and carries signals in connectors, relays, transformers, motors, power modules and other electronic devices.
Should I choose loose square pins or tape square pins?

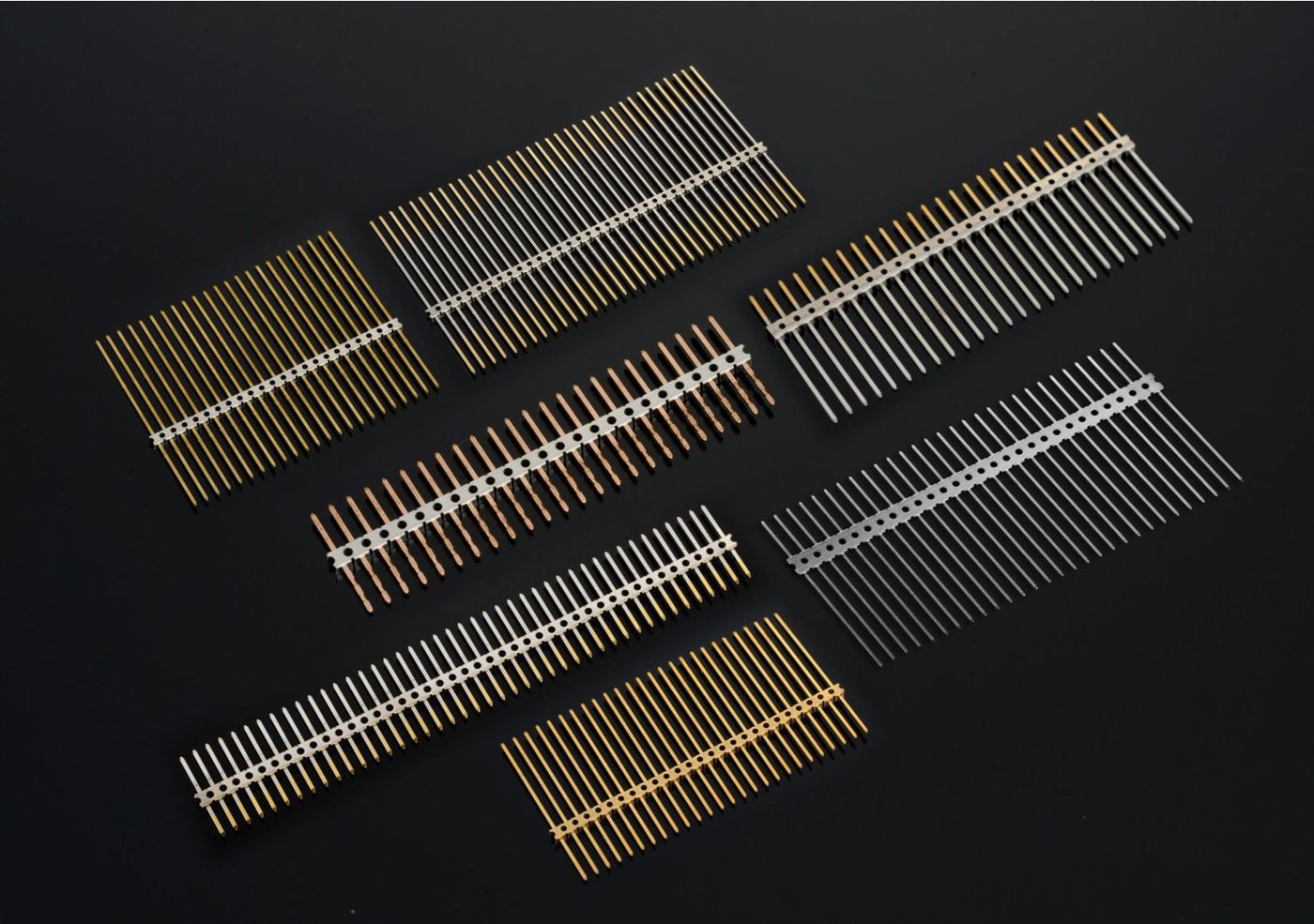

Loose pins suit manual assembly, medium volumes or pins that need custom bends. Tape pins feed straight into automatic insertion machines, so they suit high-volume connector and header production. HIFAM tape pins come in 8 pitches from 1.27 to 3.81 mm.
What is a fish-eye (press-fit) pin?
A fish-eye pin has a compliant eye-shaped section that is pressed into a plated PCB hole to make an electrical and mechanical connection without soldering. HIFAM fish-eye pins are certified to IEC 60352-5, the standard for solderless press-in connections.
Tin plating or gold plating?
Tin plating is low-cost and solders well, suiting most connectors and PCBs. Gold plating gives low contact resistance and strong oxidation resistance for low-level signals, frequent mating or harsh environments. PROSTECH recommends plating based on your application.
Can you make pins to my own drawing?
Yes. Cross-section, length, pitch, bend shape, material and plating are all made to drawing. Send your drawing to PROSTECH through the form below for a quotation.
Where can I buy HIFAM pins in Vietnam?
PROSTECH supplies HIFAM pins in Vietnam, with technical support on specification, material and plating. Use the form on this page or chat with us on Zalo to request a quote.
