Two-component epoxy are among top choices in industrial applications, renowned for its exceptional bonding capability and high durability. However, this adhesive requires precise mixing and application processes, where even a minor error in ratio or technique can compromise the product’s quality. In this article, Prostech will guide you step by step on how to mix and use epoxy adhesive effectively!
Related article:
What is AB glue and its applications?
Epoxy Resin and Its Industrial Applications – Top Epoxy Products in the Market
See all epoxy adhesive products
Challenges in Mixing Two-Component Epoxy Adhesive
Mixing Ratio
One of the most frequently mentioned concepts in this process is the mixing ratio. The mixing ratio of a two-component epoxy adhesive refers to the amount of resin and hardener/accelerator required to achieve the optimal properties of the epoxy. Each type of epoxy adhesive has its own specific mixing ratio (e.g., 1:1 or 2:1). If the measurement is not accurate, the final product may fail to achieve the desired strength or may not cure completely.
Mixing Technique
After measuring the correct ratio, proper mixing is crucial. If the components are not mixed thoroughly, the adhesive will not fully react, leading to weak spots in the bond. The mixture should achieve uniform color and consistency before use, as this indicates that the components have completely reacted. For manual methods, stirring too quickly can create air bubbles, which, when hardened, create voids that reduce both the strength and aesthetics of the bond.
Pot Life
Once mixed, epoxy adhesive begins a chemical reaction and gradually transitions into a hardened state. Pot life refers to the maximum amount of time the adhesive remains usable before the curing process renders it unworkable. This requires the operator to work quickly and accurately. If the adhesive becomes thicker or harder to spread, stop using it to prevent compromising the bond quality.
Environmental Requirements
Temperature and humidity significantly impact the reaction process and performance of the adhesive. Excessively high temperatures can shorten the pot life, causing the adhesive to cure faster than desired. High humidity levels may lead to condensation on the adhesive surface, resulting in poor-quality bonds or the appearance of air bubbles.
Two-Component Epoxy Adhesive Mixing Methods
1. Using a Mixing Nozzle
Two-component epoxy adhesives are often manufactured in dual cartridges equipped with compatible mixing nozzles. These nozzles ensure accurate mixing ratios, allowing the adhesive to be dispensed directly onto the surface through the nozzle itself. Currently, this method is considered the most ideal for mixing adhesives, addressing concerns related to mixing accuracy and application efficiency.
Advantages:
- Ensures high accuracy and uniformity.
- Convenient and time-saving, particularly for applications requiring precision.
- Reduces the risk of air bubbles.
However, in certain cases, such as dispensing very small amounts of epoxy adhesive in electronics assembly, using a mixing nozzle can be costly for production processes. In these scenarios, manufacturers may opt for modern adhesive dispensing machines or manual mixing methods.
2. Manual method for mixing two-component epoxy
Manual mixing may sound outdated in today’s advanced industrial landscape. However, it proves effective in many cases, especially if the properties of epoxy adhesive and the techniques for mixing two-component adhesives are well understood.
Step-by-step guide:
- Step 1 – Determine the required amount of adhesive: Estimate the total amount of adhesive needed during the product’s pot life to avoid wastage or insufficient mixing.
- Step 2 – Identify the mixing ratio: For example, a 10:1 ratio means 10 parts resin (A) mixed with 1 part hardener or accelerator (B). This ratio can be based on either volume or weight, as specified in the product’s technical documentation.
- Step 3 – Select tools and mixing conditions: Choose a container with minimal air exposure, as a larger surface area will cause the adhesive to cure faster. Environmental temperature also impacts the reaction rate and curing process. Avoid mixing large quantities at once and refrain from using containers made of foam or heat-sensitive materials.
- Step 4 – Measure the components: Use a precise electronic scale or measuring cup to ensure the correct ratio of resin to hardener.
- Step 5 – Mix the adhesive: For some adhesives, the resin and hardener have distinct colors, making it easy to check for uniform mixing. If both components are the same color, carefully mix in a circular motion to minimize air contact. Ensure thorough mixing, especially at the edges and bottom of the container. Slow and meticulous stirring for a few minutes ensures a homogeneous mixture.
Advantages:
- Suitable for small applications without requiring complex equipment.
- Easy to perform and cost-effective.
However, this method is only ideal for adhesives with a long pot life, allowing sufficient time for thorough mixing without premature curing. For adhesives with a short pot life or requiring high precision, specialized mixing equipment is recommended to ensure quality and efficiency.

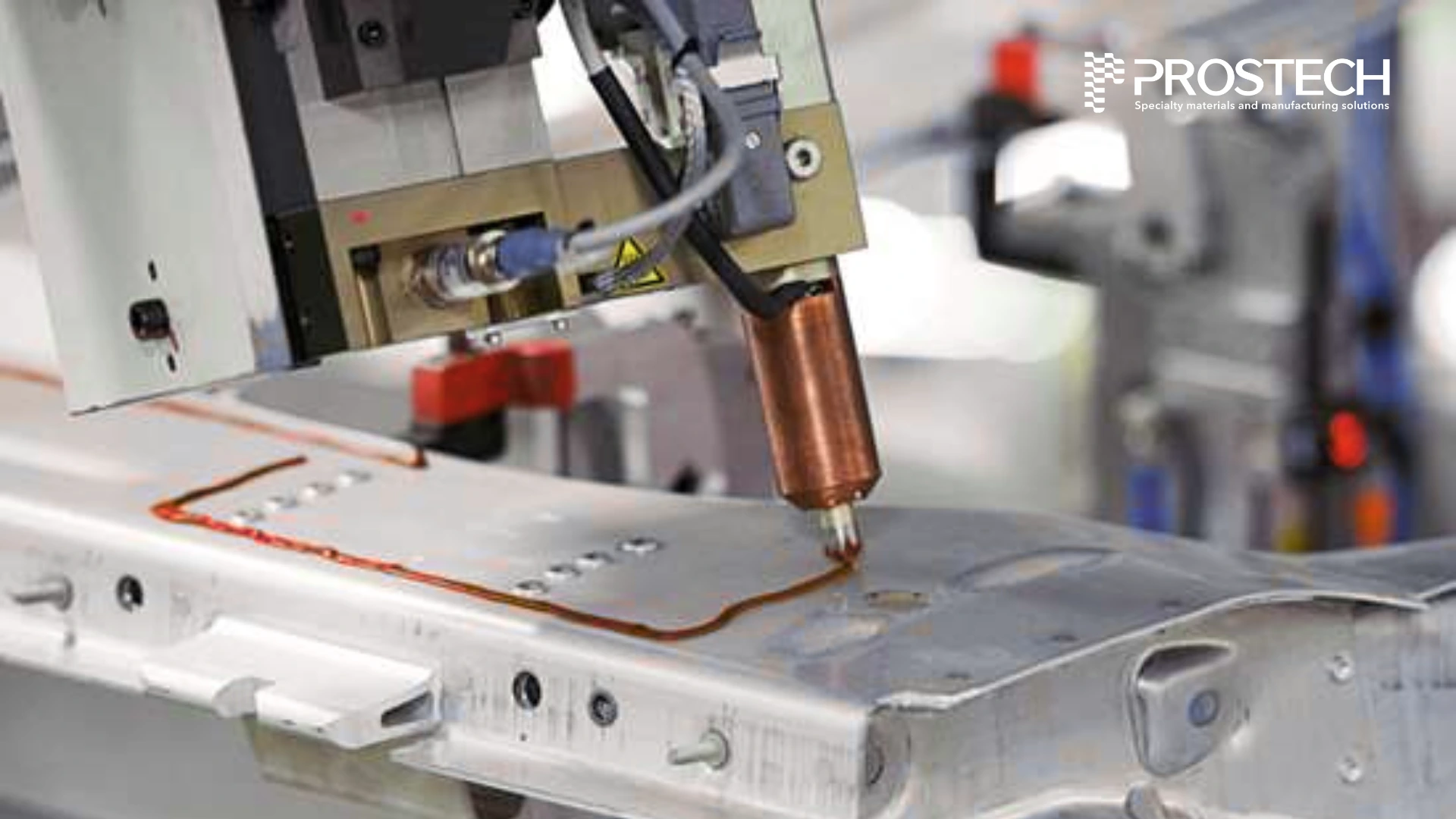

3. Using Automatic Mixing and Dispensing Systems
For high-precision and large-scale applications, automatic mixing and dispensing systems for two-component adhesives are an ideal choice. These systems are designed to maintain accurate and consistent mixing ratios, enhancing adhesive performance and quality. They can be programmed to control mixing ratios by weight or volume, ensuring stability in the mixing process. This is particularly valuable for adhesives with short pot lives and strict mixing ratio requirements to achieve optimal mechanical and chemical properties.
Advantages:
- Fast and highly efficient, suitable for large-scale industrial production.
- Absolute precision, reducing material waste.
- Ensures consistency and uniformity in every batch.
- Minimizes occupational safety risks by limiting direct exposure to chemicals.
 |  |  |
| Two-part Meter-mixing and Dispensing System – FAD-680 | Two-part Liquid Preparation Unit with High Precision IAD-650T | Two-part Liquid Preparation Unit SAH-300 |
Two-part Mixing and Dispensing System
However, these systems require significant initial investment, regular maintenance, and experienced technicians for operation.
