This product will be terminated by 2025. For an alternative solution, please refer to this product.

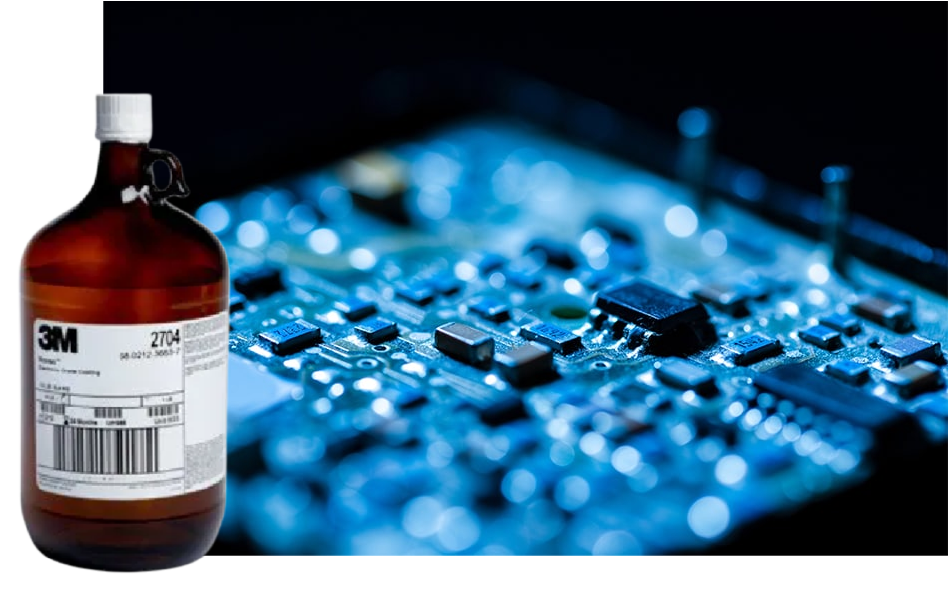

3M Novec 2704 Electronic Grade Coating is a fluorinated polymer diluted in 3M Novec 7200 Engineered Fluid, a segregated hydrofluoroether solvent, providing a low viscosity, low surface tension coating solution.
FEATURES
- Easy application and processing – dries in seconds without the need for thermal post-curing
- Requires little or no masking
- Allows solder-through repairability and is easily removed for rework & repair
- Contains a low level of volatile organic compounds (VOCs) and has low global warming potential
- Is thermally and electrically stable with excellent dielectric properties
- Provides excellent repellency, anti-wetting, and anti-sticking properties against liquids, water, hydrocarbons, silicones, and photoresists
- Contains a UV fluorescent dye incorporated into the polymer for improved QC inspection
APPLICATIONS
- Anti-Stiction
- Chemical Protection
- Corrosion Protection
- Moisture Protection
|
Application |
Anti-stiction, Chemical Protection, Corrosion Protection, Moisture Protection, Protecting |
|
Application Method |
Brush, Spray, Dip, Selective Dispense |
|
Brands |
Novec™ |
|
Coating Location |
Electronic Device Components |
|
Coating Thickness Range (Metric) |
0.3 µm – 0.6 µm, 200 nm – 1 µm |
|
Dielectric Constant |
2.8 |
|
Dielectric Strength |
2,500 V/mil, 3,700 V/mil |
|
Dissipation Factor |
0.011 |
|
Factory ISO Certification |
No ISO Certification information available |
|
Net Weight (Imperial) |
0.18 lb, 11 lb, 33 lb |
|
Net Weight (Metric) |
81 g, 5 kg, 14.97 kg |
|
Polymer Type |
Fluoroacrylate |
|
Product Series |
Novec 2704 |
|
Product Usage |
Printed Circuit Boards |
|
Removability |
Removable with 3M™ Novec™ Engineered Fluid 7100, Removable with 3M™ Novec™ Engineered Fluid 7200, Removable with 3M™ Novec™ Engineered Fluid 72A, Removable with 3M™ Novec™ Engineered Fluid 72DA |
|
Specifications Met |
RoHS 2011/65/EU |
|
Thermal Cure Time & Temperature |
No Need to Cure |
|
UV Detectable |
Yes |
|
Volume (Imperial) |
2 fl oz, 1 gal, 3.5 gal |
|
Volume (Metric) |
59.147 mL, 3.78 L, 13.2 L |
